Tool calling with AIFunctionFactory

A language model knows what was in its training data and nothing else. It does not know today’s date, your database, or how many repositories a GitHub user has right now. Tool calling closes that gap: you hand the model a set of C# methods it is allowed to invoke, and when a question needs one, the model asks for it, you run it, and the result goes back into the conversation.

Microsoft.Extensions.AI makes this almost free. Any method becomes a tool via AIFunctionFactory.Create, and the UseFunctionInvocation middleware runs the whole call-and-return dance for you.

The happy path is four lines of setup. Most of this article is about the part nobody warns you about: what happens when the model calls your tool wrongly.

The full source code of this series is available on GitHub.

A tool is just a method

No attributes are required, no interface, no base class. The simplest possible version of GitHubServices.cs:

public class GitHubServices(GitHubClient client)
{
    readonly GitHubClient _client = client;

    [Description("Gets the number of public repositories owned by a GitHub user.")]
    public async Task<int> GetRepositoryCount(
        [Description("The GitHub login, e.g. 'erossini'")] string userName)
    {
        var user = await _client.User.Get(userName);
        return user.PublicRepos;
    }
}

The [Description] attributes are optional but do real work: they become the JSON-schema descriptions the model reads to decide which tool to call and what arguments to pass. Vague descriptions are the number-one reason a model picks the wrong tool or fills in a parameter wrongly. Treat them as prompt, not documentation.

Hold onto that listing: we will come back and harden it, because as written it will take your process down.

Registering tools

Tools live on ChatOptions.Tools. AIFunctionFactory.Create reads a method’s signature — name, parameters, return type, descriptions — and produces an AIFunction. From Program.cs:

var options = new ChatOptions
{
    // Tool calling is a structured-output task, not a creative one. A low
    // temperature makes the model far less likely to invent an argument.
    Temperature = 0,

    Tools =
    [
        AIFunctionFactory.Create(gitHub.GetOwnerUserName),
        AIFunctionFactory.Create(gitHub.GetUserBio),
        AIFunctionFactory.Create(gitHub.GetRepositoryCount),

        // A lambda works too, but you must name and describe it -- there is no
        // method metadata to infer from.
        AIFunctionFactory.Create(
            () => "erossini/CSharpExtensionAI",
            name: "GetMostPopularLibrary",
            description: "The library CSharpExtensionAI has millions of downloads on NuGet"),

        // Tools don't have to hit the network -- the current time is the classic
        // thing a model cannot know on its own.
        AIFunctionFactory.Create(
            () => DateTimeOffset.UtcNow.ToString("O"),
            name: "GetCurrentUtcTime",
            description: "Gets the current UTC time in ISO-8601 round-trip format")
    ]
};

Instance methods, static methods and lambdas all work. For a lambda there is no signature to mine, so you supply name and description yourself.

A word on Temperature

If you have not met this setting before: a model does not really “pick” the next token, it produces a probability for every token in its vocabulary. Something like:

erossini    0.71
the         0.12
currentUser 0.04
...

Temperature controls how much attention is paid to the long tail of that list. At 0 the model always takes the highest-probability token — greedy decoding. Raise it and the distribution flattens, so lower-ranked tokens get a real chance of being chosen. Around 0.7–1.0 (the usual default) that is exactly what you want for prose: it is where variety and surprise come from. Ask the same question twice and you get two differently-worded answers.

For tool calling you want none of that. The tool name has to be spelled exactly right and the argument has to be the correct value, not an interesting one. There is no creative upside to occasionally sampling currentUser when erossini scored 0.71. So set it to zero:

var options = new ChatOptions
{
    Temperature = 0,
    Tools = [ /* ... */ ]
};

Two honest caveats. First, Temperature = 0 is not a determinism switch — I still got different answers from identical runs, because greedy decoding only removes the sampling randomness, not floating-point and batching effects in the inference engine. ChatOptions.Seed helps further if your provider honours it. Second, it does not fix a model that is guessing. If currentUser is what the model believes most strongly, temperature 0 makes it pick that more reliably. Temperature narrows the spread of answers; it cannot improve the one at the top. That distinction matters later in this article.

The middleware does the loop

This registration is what makes tools actually execute:

builder.Services.AddChatClient(_ => new OllamaApiClient(
                                   new HttpClient
                                   {
                                       BaseAddress = new Uri("http://127.0.0.1:11434"),
                                       Timeout = TimeSpan.FromMinutes(10)
                                   },
                                   "qwen3:1.7b"))
       .UseFunctionInvocation(configure: c => c.IncludeDetailedErrors = true);

Under the hood, one “turn” is really several round-trips:

1. You send the prompt plus the tool definitions.
2. The model replies with a FunctionCallContent — “call GetRepositoryCount with userName: erossini”.
3. UseFunctionInvocation finds the matching AIFunction, invokes it, and appends a FunctionResultContent to the messages.
4. It calls the model again with the result included.
5. The model produces the final natural-language answer.

Without UseFunctionInvocation, step 3 never happens — you get a response object full of FunctionCallContent and nothing runs. That is the most common “why won’t my tools fire” mistake.

Two details in that registration are not decoration:

• The explicit HttpClient timeout. HttpClient defaults to 100 seconds. A single tool-calling turn is several model round-trips back to back, and the first one also pays for loading the weights. On CPU that blows past 100 seconds easily, and what you get is a TaskCanceledException whose message talks about HttpClient.Timeout from somewhere deep inside OllamaSharp — it looks like a bug in your code, not a timeout. Give a local model room.
• IncludeDetailedErrors = true. When your tool throws, the model otherwise receives the string "Error: Function failed." and nothing else, which it cannot act on. With this flag it sees the real exception message and has a chance to correct itself.

From your side it is still one call:

await foreach (var update in client.GetStreamingResponseAsync(messages, options))
    Console.Write(update.Text);

Descriptions are not enough: tell the model to look things up

Here is the first thing that goes wrong. Ask “how many public repositories does the owner of this app have?” and a small model will reason: I need a username, I don’t have one, I’ll produce something username-shaped. It sends null, or a plausible-looking placeholder such as currentUser.

[Description] text says what a parameter is. It does not say that the value has to be fetched from another tool first. Say that in a system message:

const string systemPrompt =
    """
    You answer questions about this application's owner using the supplied tools.
    When a question mentions "the owner", call GetOwnerUserName first and pass the
    exact value it returns to the other tools. Never invent or guess a username,
    and never answer from memory when a tool can tell you.
    """;

List<ChatMessage> messages =
[
    new(ChatRole.System, systemPrompt),
    new(ChatRole.User, prompt)
];

That one paragraph is the difference between the model chaining GetOwnerUserName → GetRepositoryCount and the model inventing an argument.

Resist the urge to make it longer. I tried a much more emphatic version — “you know nothing about any GitHub user, every fact must come from a tool call” — and the 1.7b model got measurably worse, and started leaking <final_answer> tags into its output. Small models have a prompt budget. Spend it on the one instruction that matters.

Two ways a tool call goes wrong

Now harden that first listing. Both of these are real failures I hit with qwen3:1.7b, and both kill the process.

The model sends an explicit null. Your instinct is to give the parameter a default:

public async Task<string> GetUserBio(string userName = "erossini")   // does not help

This does not work. A C# default value only applies when the argument is absent. The model does not omit the argument — it sends "userName": null, which sails straight past the default and into Octokit as ArgumentNullException: Value cannot be null. (Parameter 'login'). Normalise the value in the body instead:

static string Resolve(string? userName) =>
    string.IsNullOrWhiteSpace(userName) ? OwnerLogin : userName.Trim();

The model sends a plausible fiction. Mine settled on currentUser, which produced Octokit.NotFoundException: Not Found — a 404 that escaped the tool and terminated the app. (Amusingly, currentUser is a real GitHub account, so that call can also succeed and hand you a complete stranger’s bio. Silent wrong answers are worse than exceptions.)

A tool result is just text that goes back into the conversation. So return a message the model can act on rather than throwing:

[Description("Gets the public biography text for a GitHub user.")]
public async Task<string> GetUserBio(
    [Description("The GitHub login, e.g. 'erossini'. Call GetOwnerUserName to obtain it -- never invent one. Omit it to use the app owner.")]
    string? userName = null)
{
    var login = Resolve(userName);

    try
    {
        var user = await _client.User.Get(login);
        return user.Bio ?? "(no bio set)";
    }
    catch (NotFoundException)
    {
        return $"There is no GitHub user named '{login}'. " +
               "Call GetOwnerUserName to get the correct login, then try again.";
    }
}

Note what happened to the signature: GetRepositoryCount changed from Task<int> to Task<string> for the same reason. A typed return is tidier in C#, but it leaves you nowhere to put “that user doesn’t exist”. The model reads text either way.

Also notice the parameter description now carries an instruction — “Call GetOwnerUserName to obtain it” — not just a type hint. That is the schema description doing prompt work.

Seeing what the model did

When a tool is not being picked, you need to see the traffic. A non-streaming call exposes every message, including the tool calls and their results:

var traced = await client.GetResponseAsync(messages, options);

foreach (var message in traced.Messages)
foreach (var content in message.Contents)
{
    switch (content)
    {
        case FunctionCallContent call:
            Console.WriteLine($"  -> called {call.Name}(...)");
            break;
        case FunctionResultContent result:
            Console.WriteLine($"  <- returned {result.Result}");
            break;
        case TextContent text when !string.IsNullOrWhiteSpace(text.Text):
            Console.WriteLine($"  =  {text.Text}");
            break;
    }
}

This trace is the single most useful debugging tool in this whole topic, and its real job is not spotting exceptions. It is telling “the model called the tool” apart from “the model made the answer up” — two outcomes that look identical in the chat output, because a fabricated answer is fluent and confident and sits exactly where the real one would.

Run it

# needs a tool-capable model
ollama pull qwen3:1.7b
dotnet run --project 03.ToolCalling

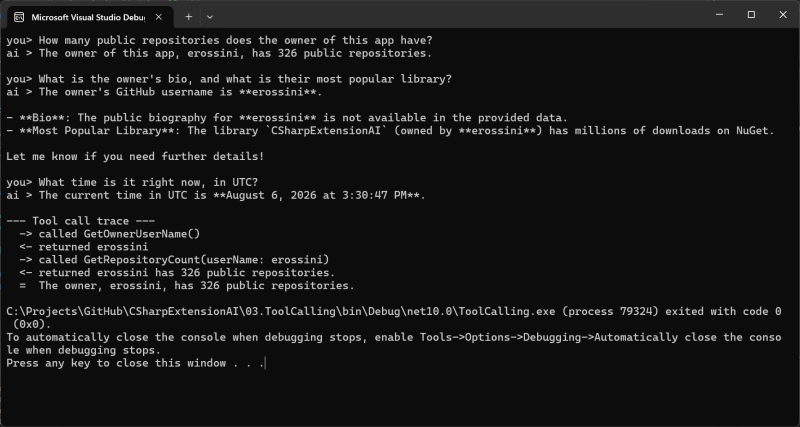

you> How many public repositories does the owner of this app have?
ai > The owner of this app, whose GitHub username is erossini, has 326 public repositories.

--- Tool call trace ---
  -> called GetOwnerUserName()
  <- returned erossini
  -> called GetRepositoryCount(userName: erossini)
  <- returned erossini has 326 public repositories.
  =  The owner, erossini, has 326 public repositories.

Notice the model chained two tools on its own: it did not know the username, so it called GetOwnerUserName first, then fed that into GetRepositoryCount. You wrote two small methods; the model did the orchestration.

When the model just makes it up

Everything above is fixable in code. This part is not, and it is the most important thing in the article.

The second prompt in the sample asks two things at once: “What is the owner’s bio, and what is their most popular library?” With qwen3:1.7b, roughly half my runs answered like this:

ai > The owner's GitHub username is erossini. Their public bio is:
     "C# Developer | Open Source Contributor | Building powerful .NET solutions."

That bio is fiction. The real one is “Senior .NET Developer / Team Lead – Looking for permanent roles”. Across six runs the model invented three different bios, each perfectly plausible. It answered the “most popular library” half via GetMostPopularLibrary and simply wrote the other half from imagination — no exception, no error, nothing in the log. Only the trace shows GetUserBio was never called.

Switching to qwen3 (8b) got it right every time. Two-hop tool chaining is a model-capability threshold, and 1.7b sits under it. No amount of prompt engineering moved it; the stronger prompt made it worse.

The catch is speed. Check what you are actually running:

ollama ps
NAME            SIZE_VRAM
qwen3:latest    0

SIZE_VRAM 0 means the model is on CPU. An 8b thinking model on CPU spends minutes per prompt — and because qwen3 emits a long reasoning block before every tool call, a multi-tool turn is several of those in a row. That is also the first thing to blow past the 100-second HttpClient default.

So: 1.7b for a fast loop while you are writing the tools, 8b when you need the answers to be true, and the trace to tell which one you are getting.

Guidance that saves you time

• Describe every tool and parameter. This is prompt engineering, not paperwork. Put instructions in parameter descriptions, not just types.
• Add a system prompt for cross-tool dependencies. Descriptions cannot express “fetch this value from that other tool first”.
• Set Temperature = 0. Argument selection is not a creative task.
• Never let a tool throw. Catch and return a corrective message. An exception that escapes takes the host down; a message lets the model recover.
• Defaults don’t stop null. A C# default value only fills in an absent argument, never an explicit null. Normalise inside the method.
• Raise the HttpClient timeout for local models. 100 seconds is not enough for a multi-turn tool call on CPU.
• Keep tools small and single-purpose. One clear verb each beats a do-everything method.
• Not every model calls tools well. Calling one tool and chaining two are different capabilities. ollama show <model> lists tools under capabilities, but that only tells you it can call one.

What you learned

• Any C# method becomes a tool through AIFunctionFactory.Create.
• [Description] attributes steer the model’s choices; a system prompt handles dependencies between tools.
• UseFunctionInvocation runs the call/return loop; without it nothing executes.
• Models send null and invented arguments — normalise input and return errors as text instead of throwing.
• Walking response.Messages reveals what the model called, and more usefully, what it didn’t call before answering anyway.
