Releasing Windows Services using Azure DevOps

With this new post, I continue to explain how releasing and deploying Windows Services using pipelines in Azure DevOps. This helps you achieve a proper CD/CI for your Windows Service projects. Some context is provided by the Microsoft documentation.

Here the list of posts related to this one:

• Deploying Windows Services using Azure DevOps
• Releasing Windows Services using Azure DevOps

The source code of this post is available on GitHub.

Windows Services built on .NET Core and classic .NET Framework can be deployed using Azure DevOps to our target machine(s). They can automatically run on these machines. This process removes the need to copy files manually.

You will have the following ready:

• An Azure DevOps account
• Your working Windows Service code is committed in Azure DevOps Repositories
• A target Windows machine to deploy to with an internet connection that you have access to. The target machine must have access to the URL dev.azure.com

So, I assume that the code for the Windows Service is in a repository and the pipeline will build the service in this repository and deploy it on the Windows Service machine.

Configuring Windows Service

Before starting with the creation of the Release pipeline, it is important to know sc.exe. This is a tool by Microsoft to manipulate the Windows Services. We can create, stop and remove services for example.

The sc.exe config command is used to modify the configuration of a service in the Windows registry. It also modifies the Service Control Manager database. This command allows you to change various parameters of a service. You can modify its type, start mode, and error control. Additionally, you can adjust the binary path, dependencies, and more.

The basic syntax of the sc.exe config command is as follows:

sc.exe [<servername>] config [<servicename>]
    [type= {own | share | kernel | filesys | rec | adapt | interact type= {own | share}}]
    [start= {boot | system | auto | demand | disabled | delayed-auto}]
    [error= {normal | severe | critical | ignore}]
    [binpath= <binarypathname>]
    [group= <loadordergroup>]
    [tag= {yes | no}]
    [depend= <dependencies>]
    [obj= {<accountname> | <objectname>}]
    [displayname= <displayname>]
    [password= <password>]

Here the list of parameters in detail:

For more information about sc.exe, read the Microsoft documentation here:

• https://learn.microsoft.com/en-us/windows-server/administration/windows-commands/sc-config
• https://learn.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/cc990290(v=ws.11)

Create the Release pipeline

So, in my previous post, I created the pipeline to build the project and publish it in the artifacts. Now in Azure DevOps, go to Pipelines > Releases > New and then New Release Pipeline.

On the Template selector that shows up, choose Empty Job at the top.

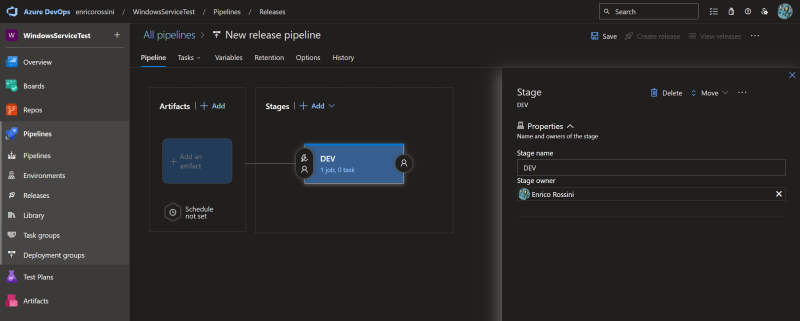

Then give this step the name you like. I called mine as the DEV (before it will deploy on the developer machine) and closed the right-hand panel for this. Usually, the name of this stage should be the name of the environment you are deploying to.

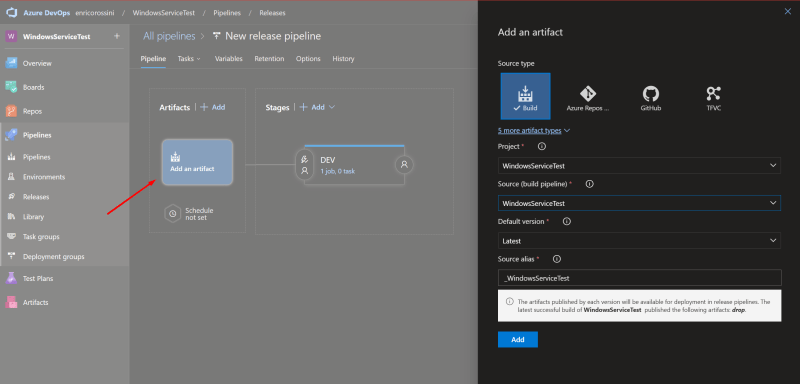

Next, click on Add an artifact and then select the source of your Artifact. In the following screenshot, I select the Build from the project in Azure DevOps. The the source is the pipeline of the project (in my case, the project is called WindowsServiceTest). That is now available from our Azure Artifacts that I built previously.

Then, click on the Add button. For a CD/CI of this service, make sure to click the Lightning icon on the Artifact just added. Then Enable Continuous deployment trigger and click Save then Click OK. Doing this will mean that every time you commit code to your project Repository in Azure Repos and a Build completes successfully, a new Release is automatically created and triggered.

Now, we have to add the tasks for the real deployment. I’m going to split step by step all the tasks to add. From the tabs, click now Tasks. The screen is looking like the following screenshot.

Add the tasks

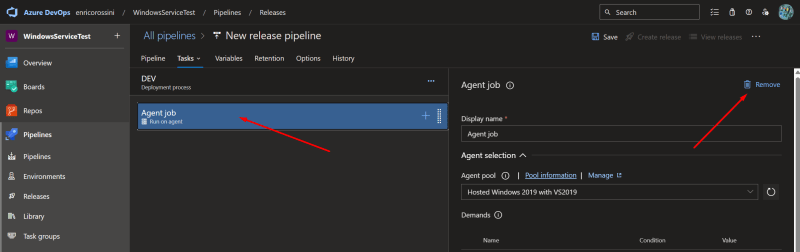

In the Tasks page we are now looking at, first click on Agent Job. Then click on Remove on the right-hand side to remove it.

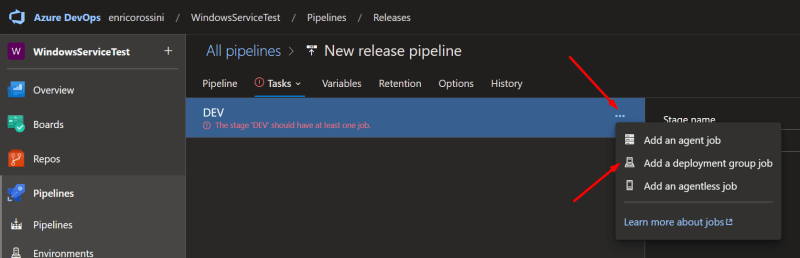

Now click on the 3 dots next to ‘DEV’ (or the name of your deployment process) and add a Deployment group job.

Add Deployment group job

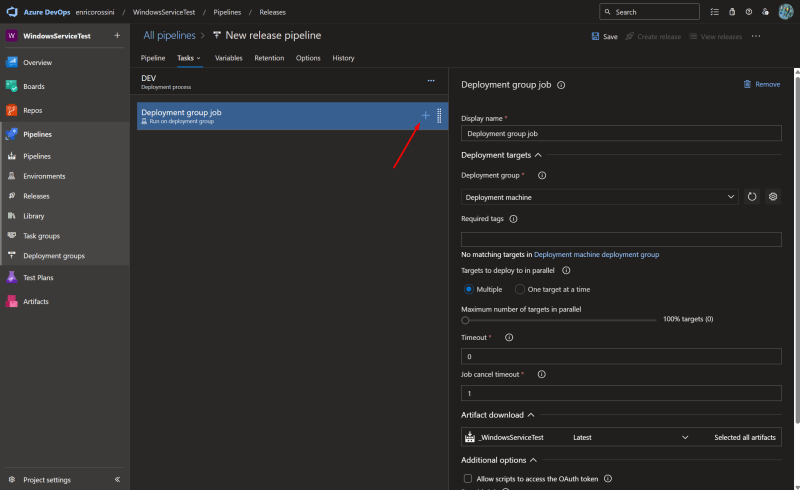

After adding a new Deployment group job, a bit of configuration is required. In the settings of this option, select from the dropdown list of Deployment group, the name of the group to use for the deployment. In my case, it will be Deployment machine.

This is how it looks after the selection of the Deployment machine. Now, I want to add a new task. For that, I have to click on the + related to the Deployment group job.

Add Command line task to uninstall the service

Now, the next step is to stop and remove the service if it already exists. I want to save all the Windows Services in a common directory. Each service should have its own directory within it. I called the common folder ADOWindowsServices (ADO = Azure DevOps). Remember that my service is called WindowsServiceTest. So, I want to check as follows:

• stop the Windows service
• delete the Windows service
• verify if the folder for the service exists. If it does not exist, I can skip the steps up to NODIR
• Enter in the ADOWindowsServices
• Delete the folder

To stop and delete the service, I use sc.exe

sc STOP <servicename>
sc DELETE <servicename>

I found that this command is working better if the parameters are in capital letters. Maybe it is just me.

Then, I want to check if the folder for the service exists already. The folder that contains all the other folders is located in the root of C:.

C:
IF NOT EXIST C:\ADOWindowsServices\WindowsServiceTest GOTO NODIR

if the folder for the service is not exists, the script will jump to the label NODIR. If not, it opens the common folder and delete the service folder.

cd C:\ADOWindowsServices
rd /s /q WindowsServiceTest

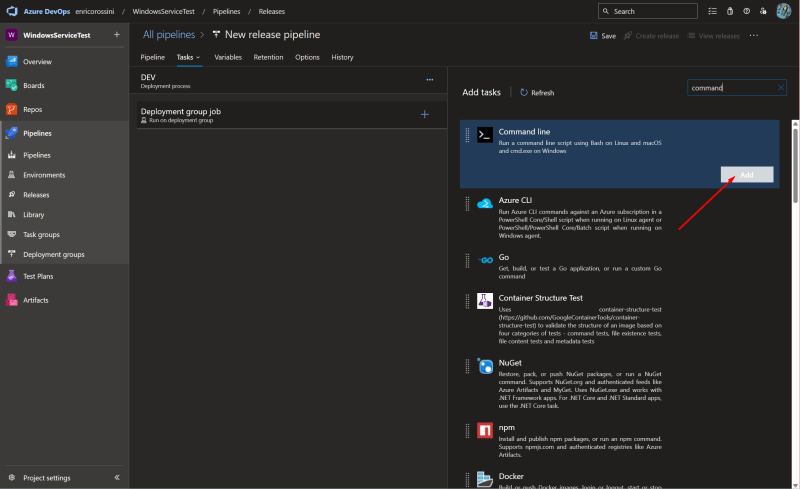

So, first, I have to add from the catalogue the Command Line task. So, click on the + in the Deployment group job tab and the list of tasks will appear. Search for this task and click Add.

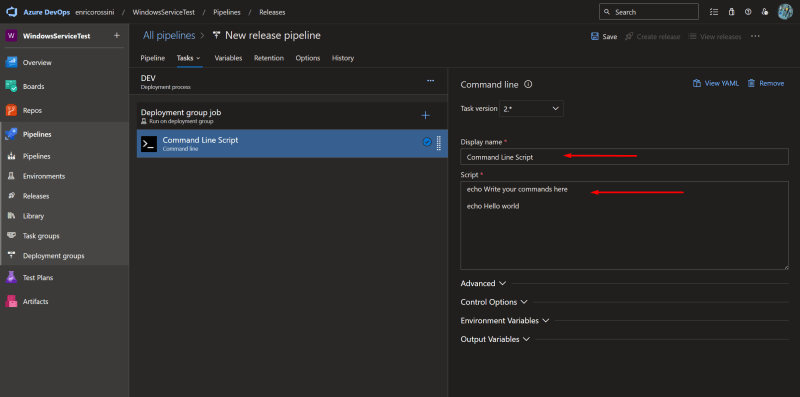

Then, click on the task to see the settings. Change the Display name and the Script.

Although, it doesn’t seem allow to paste a YAML script, I can copy the commands from the script below and paste in the Script. This is the YAML of this step. Remember to rename WindowsServiceTest with the name of your service.

steps:
- script: |
   sc STOP WindowsServiceTest
   sc DELETE WindowsServiceTest

   C:
   IF NOT EXIST C:\ADOWindowsServices\WindowsServiceTest GOTO NODIR
   cd C:\ADOWindowsServices
   rd /s /q WindowsServiceTest

   :NODIR

  displayName: 'Uninstall Existing Service'

Extract files

Then, the next step is to extract the files from the zip file. Just as a reminder, in the previous post, I created a zip file from the build folder. Here, I’m going to unzip the file in the service folder.

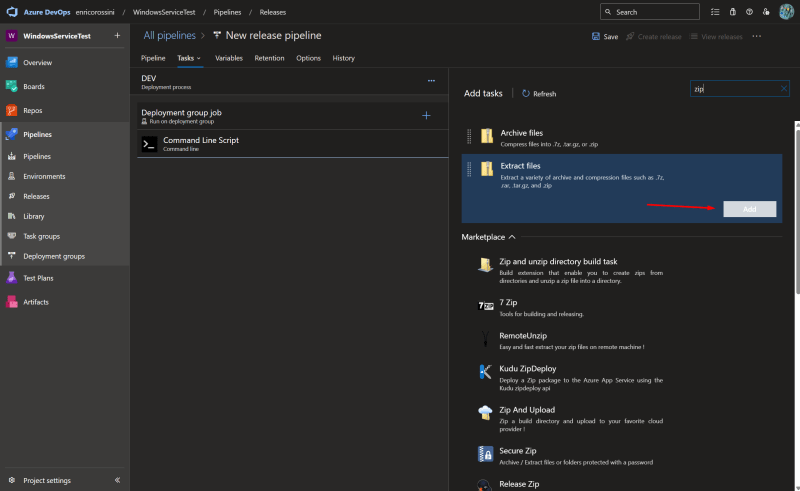

So, click on the + in the Deployment group job tab and the list of tasks will appear. Search for Extract files and Add this task.

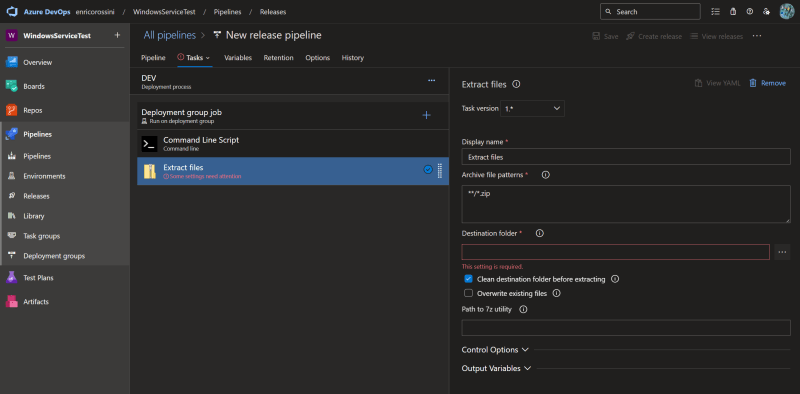

Now, in the setting of this task, the Destination folder is required.

In my case, the destination folder is C:\ADOWindowsServices\WindowsServiceTest. So, the setting result is

Install the service

Now, the last thing to do is to install and start the service. Again, I will use sc.exe to do that. Here is the script to copy and paste into the settings. Remember to change the name of the service to yours.

SC CREATE WindowsServiceTest start=auto binpath=C:\ADOWindowsServices\WindowsServiceTest\WindowsServiceTest.exe

SC description "WindowsServiceTest" "This is a Windows Service from Azure DevOps"
SC START WindowsServiceTest

I noticed that having a space in start= auto is working better than start=auto

Here is what it looks like.

Save

Last but not least, remember to Save the pipeline. Also, you can rename the New release pipeline with a more meaningful name.

Create a release

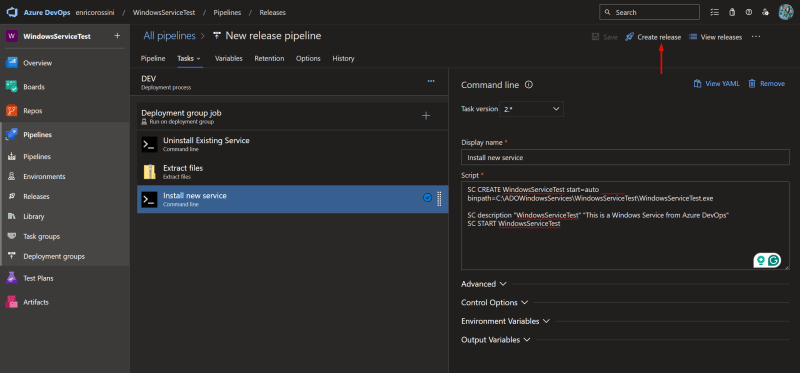

After all of that, finally, I can create my first release. After saving, the Create release is enabled.

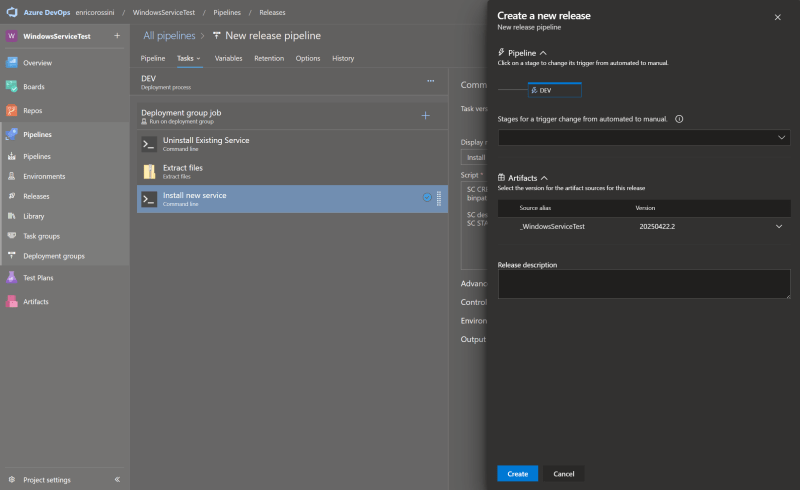

When I click on this button, I see the configuration of the release.

After clicking Create, a message appears to communicate that the release has been created.

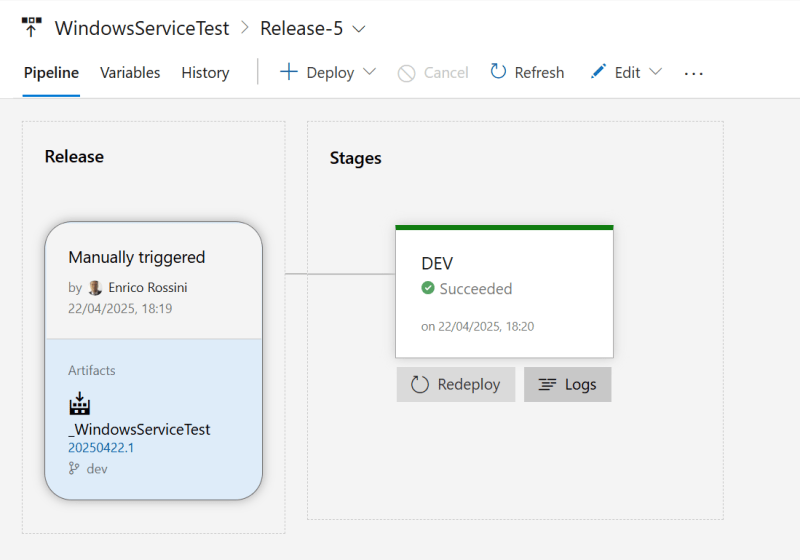

If I click on the release name (in the above screenshot Release-5), I can see the progress of the deployment. At the end of the process, I can see a screen like that.

In this screen, I can see all the details about the deployment, see the logs and redeploy this specific build.

Wrap up

I hope those 2 posts about Deploying and Releasing Windows Services using Azure DevOps are useful. Please let me know if you have any further questions or comments.
