Replacing Swagger with Scalar in ASP.NET Core

Why Scalar?

Scalar is a modern API reference UI that consumes a standard OpenAPI document. It replaces both Swashbuckle’s document generator and the Swagger UI in a single, cleaner setup. .NET 9/10 ships a built-in OpenAPI document generator (Microsoft.AspNetCore.OpenApi) that Scalar can use directly, removing the Swashbuckle dependency entirely.

Update the .csproj

Remove Swashbuckle.AspNetCore and add the two packages you need:

<!-- Remove this -->
<PackageReference Include="Swashbuckle.AspNetCore" Version="10.x.x" />

<!-- Add these -->
<PackageReference Include="Microsoft.AspNetCore.OpenApi" Version="10.0.3" />
<PackageReference Include="Scalar.AspNetCore" Version="2.12.52" />

Microsoft.AspNetCore.OpenApi is the built-in .NET document generator. Scalar.AspNetCore provides the UI middleware and its configuration API.

Register OpenAPI in Program.cs

Replace AddSwaggerGen(...) with AddOpenApi(...).

Basic call (no auth)

builder.Services.AddEndpointsApiExplorer(); // still needed for controller-based APIs
builder.Services.AddOpenApi("v1");

The string "v1" is the document name — it determines the URL the spec is served at: /openapi/v1.json.

With a document transformer

A document transformer is a delegate that runs once when the OpenAPI document is first requested. Use it to set metadata and inject the JWT security scheme:

builder.Services.AddOpenApi("v1", options =>
{
    options.AddDocumentTransformer((document, context, cancellationToken) =>
    {
        // ── API metadata ──────────────────────────────────────────────
        document.Info = new Microsoft.OpenApi.OpenApiInfo
        {
            Title = "ChatServer API",
            Version = "v1",
            Description = "Standalone API for Birkbeck Chat"
        };

        // ── Bearer security scheme ────────────────────────────────────
        // Components and SecuritySchemes are null until explicitly initialised.
        document.Components ??= new Microsoft.OpenApi.OpenApiComponents();
        document.Components.SecuritySchemes ??=
            new Dictionary<string, Microsoft.OpenApi.IOpenApiSecurityScheme>();

        document.Components.SecuritySchemes["Bearer"] =
            new Microsoft.OpenApi.OpenApiSecurityScheme
            {
                Type        = Microsoft.OpenApi.SecuritySchemeType.Http,
                Scheme      = "bearer",   // must be lowercase "bearer"
                BearerFormat = "JWT",
                Description = "Enter your JWT token (without the 'Bearer ' prefix)"
            };

        // ── Attach security requirement to every endpoint ─────────────
        // This makes the padlock icon appear on all operations in the UI.
        if (document.Paths is not null)
            foreach (var path in document.Paths.Values)
                if (path.Operations is not null)
                    foreach (var operation in path.Operations.Values)
                    {
                        // Security list is also null until initialised.
                        operation.Security ??=
                            new List<Microsoft.OpenApi.OpenApiSecurityRequirement>();

                        operation.Security.Add(
                            new Microsoft.OpenApi.OpenApiSecurityRequirement
                            {
                                // OpenApiSecuritySchemeReference links the requirement
                                // back to the named scheme defined in Components above.
                                [new Microsoft.OpenApi.OpenApiSecuritySchemeReference(
                                    "Bearer", document)] = []
                            });
                    }

        return Task.CompletedTask;
    });
});

Why all the null checks?

In Microsoft.OpenApi v3 (used by Microsoft.AspNetCore.OpenApi 10.x), most collections on the model objects (SecuritySchemes, Operations, Security) are not initialised by their constructors — they start as null. Using the ! null-forgiving operator only silences the compiler; it does not prevent a NullReferenceException at runtime. Explicit ??= initialisation and is not null guards are required.

Configure the middleware

Replace app.UseSwagger() / app.UseSwaggerUI() with:

if (app.Environment.IsDevelopment())
{
    // Serves the raw OpenAPI JSON at /openapi/v1.json
    app.MapOpenApi();

    // Mounts the Scalar UI at /scalar/v1 (default route)
    app.MapScalarApiReference(options =>
    {
        options
            .WithTitle("ChatServer API")
            .WithTheme(ScalarTheme.BluePlanet)
            .AddPreferredSecuritySchemes("Bearer")
            .AddHttpAuthentication("Bearer", http => { });
    });
}

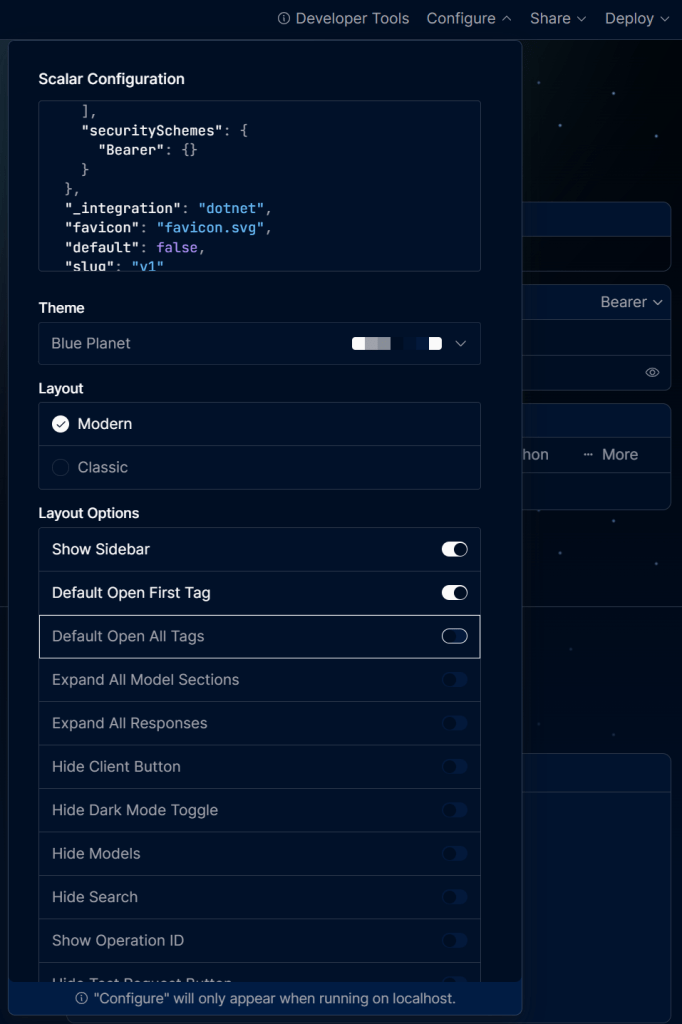

Scalar option explanations

Note on deprecated APIs: In Scalar versions before 2.x, these were called WithPreferredScheme and WithHttpBearerAuthentication. Both are now marked [Obsolete]. Use AddPreferredSecuritySchemes and AddHttpAuthentication instead.

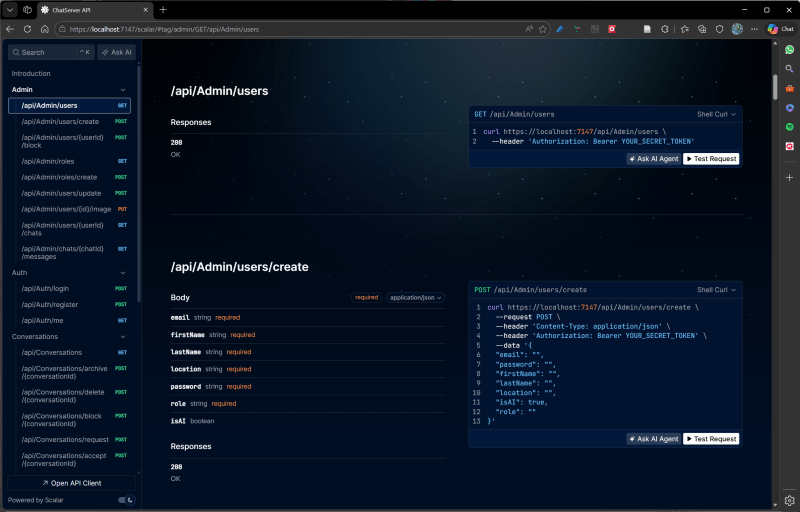

How authentication works in the UI

1. Open https://localhost:{port}/scalar/v1
2. Click the “Authenticate” button (top right)
3. A panel opens showing the Bearer scheme
4. Paste your JWT token — without the Bearer prefix
5. Click Save
6. All subsequent “Send” requests will include Authorization: Bearer <your-token> automatically

To get a token, use the POST /api/auth/login endpoint (which is marked [AllowAnonymous] and therefore works without a token).

Full Program.cs block for reference

using Scalar.AspNetCore;

// ── Service registration ──────────────────────────────────────────────────
builder.Services.AddControllers();
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddOpenApi("v1", options =>
{
    options.AddDocumentTransformer((document, context, cancellationToken) =>
    {
        document.Info = new Microsoft.OpenApi.OpenApiInfo
        {
            Title   = "My API",
            Version = "v1"
        };

        document.Components ??= new Microsoft.OpenApi.OpenApiComponents();
        document.Components.SecuritySchemes ??=
            new Dictionary<string, Microsoft.OpenApi.IOpenApiSecurityScheme>();
        document.Components.SecuritySchemes["Bearer"] =
            new Microsoft.OpenApi.OpenApiSecurityScheme
            {
                Type         = Microsoft.OpenApi.SecuritySchemeType.Http,
                Scheme       = "bearer",
                BearerFormat = "JWT",
                Description  = "Enter your JWT token"
            };

        if (document.Paths is not null)
            foreach (var path in document.Paths.Values)
                if (path.Operations is not null)
                    foreach (var operation in path.Operations.Values)
                    {
                        operation.Security ??=
                            new List<Microsoft.OpenApi.OpenApiSecurityRequirement>();
                        operation.Security.Add(
                            new Microsoft.OpenApi.OpenApiSecurityRequirement
                            {
                                [new Microsoft.OpenApi.OpenApiSecuritySchemeReference(
                                    "Bearer", document)] = []
                            });
                    }

        return Task.CompletedTask;
    });
});

// ── Middleware ────────────────────────────────────────────────────────────
if (app.Environment.IsDevelopment())
{
    app.MapOpenApi();                        // /openapi/v1.json
    app.MapScalarApiReference(options =>
    {
        options
            .WithTitle("My API")
            .WithTheme(ScalarTheme.BluePlanet)
            .AddPreferredSecuritySchemes("Bearer")
            .AddHttpAuthentication("Bearer", http => { });
    });                                      // /scalar/v1
}

Key differences from Swashbuckle

Common pitfalls

NullReferenceException on SecuritySchemes

new OpenApiComponents() does not initialise SecuritySchemes. Always use ??= before indexing:

document.Components ??= new Microsoft.OpenApi.OpenApiComponents();
document.Components.SecuritySchemes ??=
    new Dictionary<string, Microsoft.OpenApi.IOpenApiSecurityScheme>();
document.Components.SecuritySchemes["Bearer"] = ...

NullReferenceException on Operations or Security

Both are null on freshly built path/operation objects. Guard with is not null and ??=:

if (path.Operations is not null)
    foreach (var operation in path.Operations.Values)
    {
        operation.Security ??= new List<Microsoft.OpenApi.OpenApiSecurityRequirement>();
        operation.Security.Add(...);
    }

?? / ??= type mismatch compiler errors

SecuritySchemes is typed as IDictionary<string, IOpenApiSecurityScheme> (interface), not Dictionary<string, OpenApiSecurityScheme> (concrete). Use the interface type when initialising:

// Correct
document.Components.SecuritySchemes ??=
    new Dictionary<string, Microsoft.OpenApi.IOpenApiSecurityScheme>();

// Wrong — type mismatch
document.Components.SecuritySchemes ??=
    new Dictionary<string, Microsoft.OpenApi.OpenApiSecurityScheme>();

Obsolete Scalar APIs (versions before 2.x)
