Secure Blazor WebAssembly with IdentityServer4

In this post, I’m going to explain how to secure a Blazor WebAssembly application with IdentityServer4. The full source code of this projects is on GitHub.

Blazor WebAssembly runs on the client and thus, it can’t be trusted. This means that just like with any JavaScript application, the authorization part can be bypassed. So, this means that we have to implement our authorization actions outside of the Blazor WebAssembly app. That said, in this article, we are going to learn how we can secure Blazor WebAssembly with IdentityServer4 using the token-based authorization.

It is very important that you are familiar with the IdentityServer4, OAuth2, and OIDC concepts. If you are not, we strongly suggest you reading our IdentityServer4, OAuth2, and OIDC posts. There, you will learn everything you need related to IdentityServer4. Also, it will be much easier for you to follow along with this article (and the other articles from the Blazor WebAssembly with IdentityServer4 series).

Blazor WebAssembly Security Overview

Blazor WebAssembly is a single page application (SPA) and, we can integrate different authorization options inside it. The most common option is using the tokens with OAuth2 and OIDC. As the most common option, we are going to use it in this series as well. Also, we are going to use the Authorization Code flow with PKCE to secure our client application.

So basically, after we log in with our Blazor WebAssembly application, the IdentityServer will provide us with id and access tokens. We are going to use the id token for the user’s information and the access token to access our Web API’s protected resources. Of course, there are a lot of operations happening between the authentication and fetching the protected resources.

Client Application Overview

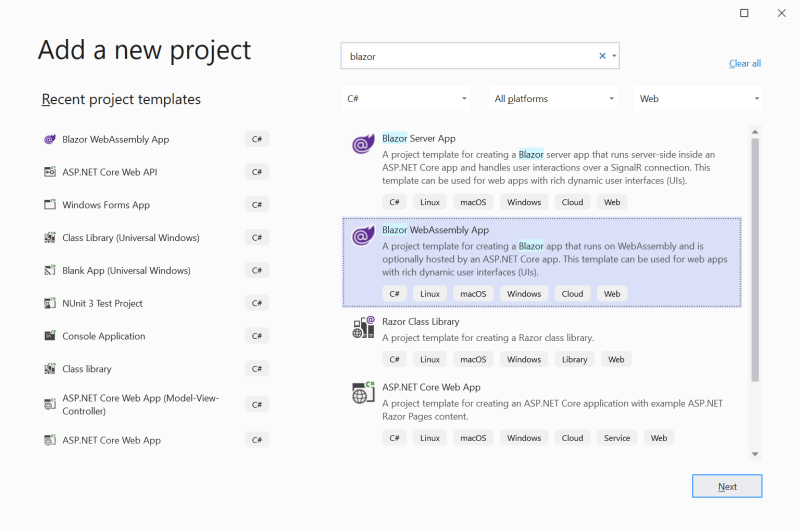

In the start folder, we can find only the IS4 and Web API applications but we can’t find the client app. So, let’s create it. We are going to choose the Blazor WebAssembly project and choose the Individual Accounts option. Then, Add a new project to your solution.

Type the name of your project and solution and then click Next. In the wizard at the step Additional information, change the Authentication Type and select Individual Accounts.

After we create this application, we are going to have several components implemented to help us with the authentication actions. So, let’s inspect them to see what Blazor default authentication provides for us.

Inspecting Components and Libraries

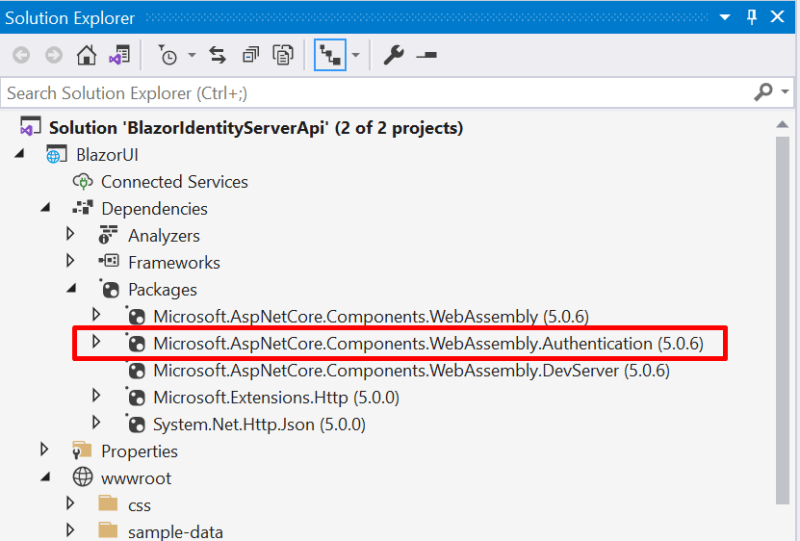

First, we can check the Dependencies part in the Solution Explorer:

We use this package to support the client-side authentication and to help the integration process of Blazor WebAssembly with IdentityServer4. Let’s inspect the index.html file. We can see the import statement for the AuthenticationService.js library, which helps with the authentication operations:

<script
   src="_content/Microsoft.AspNetCore.Components.WebAssembly.Authentication/AuthenticationService.js">
</script>

Then, we can open the Authentication.razor file under the Pages folder:

@page "/authentication/{action}"
@using Microsoft.AspNetCore.Components.WebAssembly.Authentication
<RemoteAuthenticatorView Action="@Action" />

@code{
    [Parameter] public string Action { get; set; }
}

This component, through its route, accepts the appropriate authentication actions at each stage of authentication. Also, it calls the RemoteAuthenticatorVew component to execute the required action. Of course, we have to send an action to this component from our application. That said, let’s inspect the RedirectToLogin.razor component:

@inject NavigationManager Navigation
@using Microsoft.AspNetCore.Components.WebAssembly.Authentication
@code {
    protected override void OnInitialized()
    {
        Navigation.NavigateTo($"authentication/login?returnUrl={Uri.EscapeDataString(Navigation.Uri)}");
    }
}

As we can see, this component injects the NavigationManager service and use the NavigateTo method to navigate to our Authentication component passing the login as the action parameter.

Finally, we have to use this RedirectToLogin component somewhere.

So, let’s open the App.razor component:

<CascadingAuthenticationState>
    <Router AppAssembly="@typeof(Program).Assembly" PreferExactMatches="@true">
        <Found Context="routeData">
            <AuthorizeRouteView RouteData="@routeData" DefaultLayout="@typeof(MainLayout)">
                <NotAuthorized>
                    @if (!context.User.Identity.IsAuthenticated)
                    {
                        <RedirectToLogin />
                    }
                    else
                    {
                        <p>You are not authorized to access this resource.</p>
                    }
                </NotAuthorized>
            </AuthorizeRouteView>
        </Found>
        <NotFound>
            <LayoutView Layout="@typeof(MainLayout)">
                <p>Sorry, there's nothing at this address.</p>
            </LayoutView>
        </NotFound>
    </Router>
</CascadingAuthenticationState>

So, in the NotAuthorized part, we check if the user is authenticated, and if that’s not true, we call the RedirectToLogin component. Then as we saw, in that component we navigate to the Authentication component, which then calls the RemoteAuthenticatorVew component to handle the auth action.

Securing Blazor WebAssembly with IdentityServer4

After we are familiar with all these actions, we can start with the integration of Blazor WebAssembly with IdentityServer4.

Let’s open the CompanyEmployees.OAuth project and find the Configuration/InMemoryConfig class. This is the in-memory configuration for our users, clients, scopes, and APIs. Don’t start the application yet.

In this post, I assume you already have the required knowledge about the IdentityServer4 implementation. That said, we won’t spend too much time explaining the basic concepts. We’ve linked the IdentityServer4 series several times in this article so feel free to read it if you need any additional information.

Okay, let’s open the InMemoryConfig class and add the required client configuration:

new Client
{
    ClientId = "BlazorUI",
    AllowedGrantTypes = GrantTypes.Code,
    RequirePkce = true,
    RequireClientSecret = false,
    AllowedCorsOrigins = { "https://localhost:44371" },
    AllowedScopes =
    {
        IdentityServerConstants.StandardScopes.OpenId,
        IdentityServerConstants.StandardScopes.Profile
    },
    RedirectUris = { "https://localhost:5020/authentication/login-callback" },
    PostLogoutRedirectUris = { "https://localhost:5020/authentication/logout-callback" }
}

So, there is nothing new here, if you are familiar with the client configuration in the IdentityServer4 project. As you can see, we are using the Code for AllowGrantTypes, which stands for the Authorization Code flow. Also, we require PKCE. Additionally, we can see all the other familiar properties, from the mentioned series, like client id, origins, scopes, redirect, and post redirect URIs.

With this out of the way, we can start our application. This will create a new CompanyEmployeeOAuth database and populate it with the required configuration.

Blazor WebAssembly Project Configuration

Before we start with the client-side configuration, we have to modify the Blazor’s lunchSettings.json file:

{
  "iisSettings": {
    "windowsAuthentication": false,
    "anonymousAuthentication": true,
    "iisExpress": {
      "applicationUrl": "https://localhost:56658",
      "sslPort": 44357
    }
  },
  "profiles": {
    "BlazorWebAssembly.Client": {
      "commandName": "Project",
      "launchBrowser": true,
      "inspectUri": "{wsProtocol}://{url.hostname}:{url.port}/_framework/debug/ws-proxy?browser={browserInspectUri}",
      "applicationUrl": "https://localhost:5020;https://localhost:5021",
      "environmentVariables": {
        "ASPNETCORE_ENVIRONMENT": "Development"
      }
    }
  }
}

In the IS4 configuration class, we set the RedirectUris and PostLogoutRedirectUris properties to localhost:5020/... and therefore, we have to set our client application to run on the same URI.

Now, we can open the Program.cs class and inspect the AddOidcAuthentication part:

builder.Services.AddOidcAuthentication(options =>
{
    // Configure your authentication provider options here.
    // For more information, see https://aka.ms/blazor-standalone-auth
    builder.Configuration.Bind("Local", options.ProviderOptions);
});

By calling this method, we add support for the authentication actions in our Blazor WebAssembly application. Also, inside it, we use the builder object to bind the configuration from the appsettings.json file that resides in the wwwroot folder. Even though we can add all the properties here (ClientId, RedirectURIs…) by using the options parameter, we are not going to do that. What we are going to do is to open the appsettings.json file, remove the content inside it, and add our own configuration:

{
    "oidc": {
        "Authority": "https://localhost:5005/",
        "ClientId": "BlazorUI",
        "ResponseType": "code",
        "DefaultScopes": [
            "openid",
            "profile"
        ],
        "PostLogoutRedirectUri": "authentication/logout-callback",
        "RedirectUri": "authentication/login-callback"
    }
}

As you can see, we have the configuration with the name oidc in place with the familiar properties that match all the properties on the IS4 side. Of course, we have an additional Authority property that points to the IS4 URI.

All we have left to do is to modify the Local string to the oidc in the AddOidcAuthentication method:

builder.Services.AddOidcAuthentication(options =>
{
    builder.Configuration.Bind("oidc", options.ProviderOptions);
});

That’s it. We can test it.

Testing the Blazor WebAssembly with IdentityServer Auth Actions

Now, let’s start the IS4 (if not already started) and the Blazor WebAssembly applications:

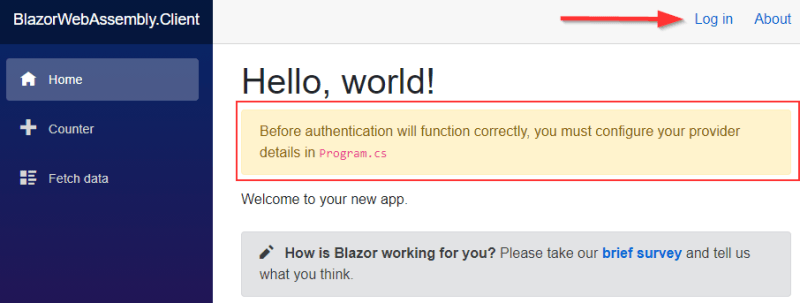

We can see the Home page with the Log in link and the message about the authentication configuration. Of course, we have completed the part this message is referring to.

Let’s click the Log in link:

To continue, let’s log in with the credentials from one of our users from the InMemoryConfig class

We can see, we are logged in. There is the Log out link as well as the Hello message. But this message is not complete, we are missing something.

Before we solve that problem, let’s click the Log out link:

Inspecting Auth Menu and Solving the Claim Issue

We can see that the Log in and Log out links are switching based on the user’s authentication state. But, where does this logic come from?

To answer that, let’s open the Shared/LoginDisplay.razor file:

@using Microsoft.AspNetCore.Components.Authorization
@using Microsoft.AspNetCore.Components.WebAssembly.Authentication

@inject NavigationManager Navigation
@inject SignOutSessionStateManager SignOutManager

<AuthorizeView>
    <Authorized>
        Hello, @context.User.Identity.Name!
        <button class="nav-link btn btn-link" @onclick="BeginSignOut">Log out</button>
    </Authorized>
    <NotAuthorized>
        <a href="authentication/login">Log in</a>
    </NotAuthorized>
</AuthorizeView>

@code{
    private async Task BeginSignOut(MouseEventArgs args)
    {
        await SignOutManager.SetSignOutState();
        Navigation.NavigateTo("authentication/logout");
    }
}

In the AuthorizeView component, if the user is authorized, we show the message and the Log out link. But if the user is not authorized, we show the Log in link. Also, once the user clicks the Log out link, the BeginSignOut method is called. There,  we use the SignOutManager.SetSignOutState method to set the authentication state for the log out operation, and navigate to the Authentication component with the logout action parameter.

Finally, we can see the problem in the Hello message. It uses the Name claim to display it within the message. The problem is that our users don’t have that claim in the claims configuration. So, to fix it, let’s remove the database from the SQL Server. Then, we are going to add a new claim to both our users in the InMemoryConfig class:

public static List<TestUser> GetUsers() =>
    new List<TestUser>
    {
        new TestUser
        {
            ...
            Claims = new List<Claim>
            {
                new Claim(JwtClaimTypes.Name, "Enrico Rossini"),
                new Claim("given_name", "Enrico"),
                ...
            }
        },
        new TestUser
        {
            ...
            Claims = new List<Claim>
            {
                new Claim(JwtClaimTypes.Name, "Pure SourceCode"),
                new Claim("given_name", "Pure"),
                ...
            }
        }
};

Custom Authentication User Interface

For different application states, when executing authentication actions, we can see different screens provided by the authentication middleware. For example,  as soon as we click the log in link, before the Login screen, we can see the screen with the “Checking Login State…” message. Also if we click the Cancel button on the Login screen, we are going to see the page with the “There was an error trying to log you in” message. If we log out from our application, we are going to see the page with the “You are logged out” message.

All of these pages, and many others that we didn’t mention, are provided by the RemoteAuthenticatorView component, which we can find in the Authentication.razor component.

Because we know which component provides these UI state pages, we can modify them. Of course, we won’t modify all of them, but after our example, it will be quite simple to modify the other pages.

That said, let’s modify the Authentication.razor component:

@page "/authentication/{action}"
@using Microsoft.AspNetCore.Components.WebAssembly.Authentication
<RemoteAuthenticatorView Action="@Action">
    <LogInFailed>
        <h2>Your have canceled the Login action.</h2>
    </LogInFailed>
    <LogOutSucceeded>
        <h2>The Logout action was completed successfully.</h2>
    </LogOutSucceeded>
</RemoteAuthenticatorView>

@code{
    [Parameter] public string Action { get; set; }
}

Now, we don’t have a self-closing RemoteAuthenticatorView tag, but instead, we have an open and close tag for that component. Between, we use the LogInFailed and LogOutSuceeded components with the message inside each component. Pay attention that we use here only the <h2>tags to add the message to each component, but you can create your own component and call them instead of the heading tags.

With this in place, we can navigate to the Login page and click the Cancel button:

Also, once we log out from the application, we are going to see our new custom message:
